G4S scintillation detector

SMALL, COMPACT AND MODERN ALTERNATIVE TO 1” NaI:Tl SCINTILLATION DETECTORS FOR EFFICIENT GAMMA DETECTION

G4S scintillation detector

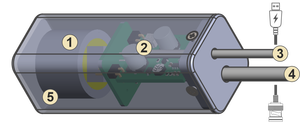

The family of modern G4S scintillation detectors based on GAGG+ scintillators and SiPM photomultipliers provides a modern alternative to commonly used 1” NaI:Tl-based detectors.

COMPARISON TO NaI:Tl SCINTILLATION DETECTORS
With only 26x26x120 mm (1x1x4.7 inches), the G4S detector provides a convenient alternative to NaI:Tl based detectors with no need for additional equipment	SMALLER AND COMPACT SOLUTION	Unlike NaI:Tl based detectors, the G4S detector does not require a HV supply to operate. Preamplifier is optional and not required for data acquisition
	COMPARABLE DETECTION EFFICIENCY TO 1" NaI:Tl

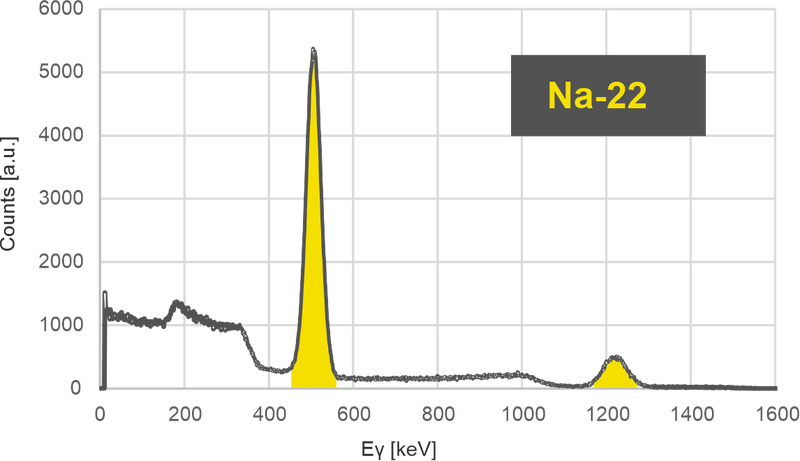

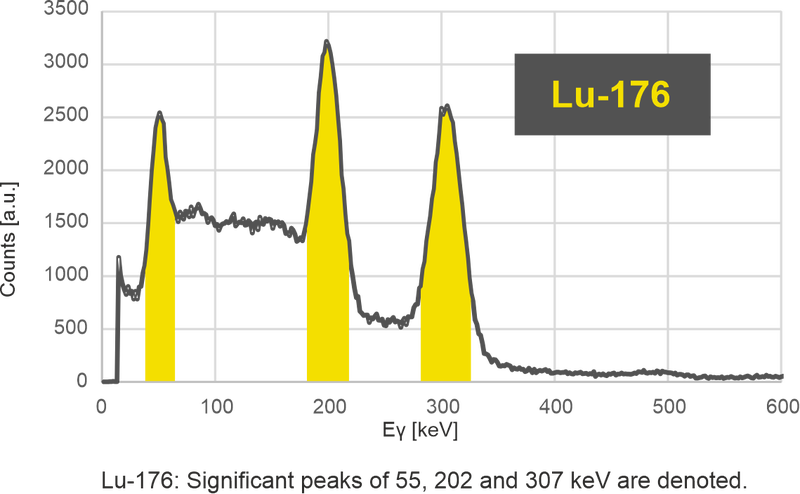

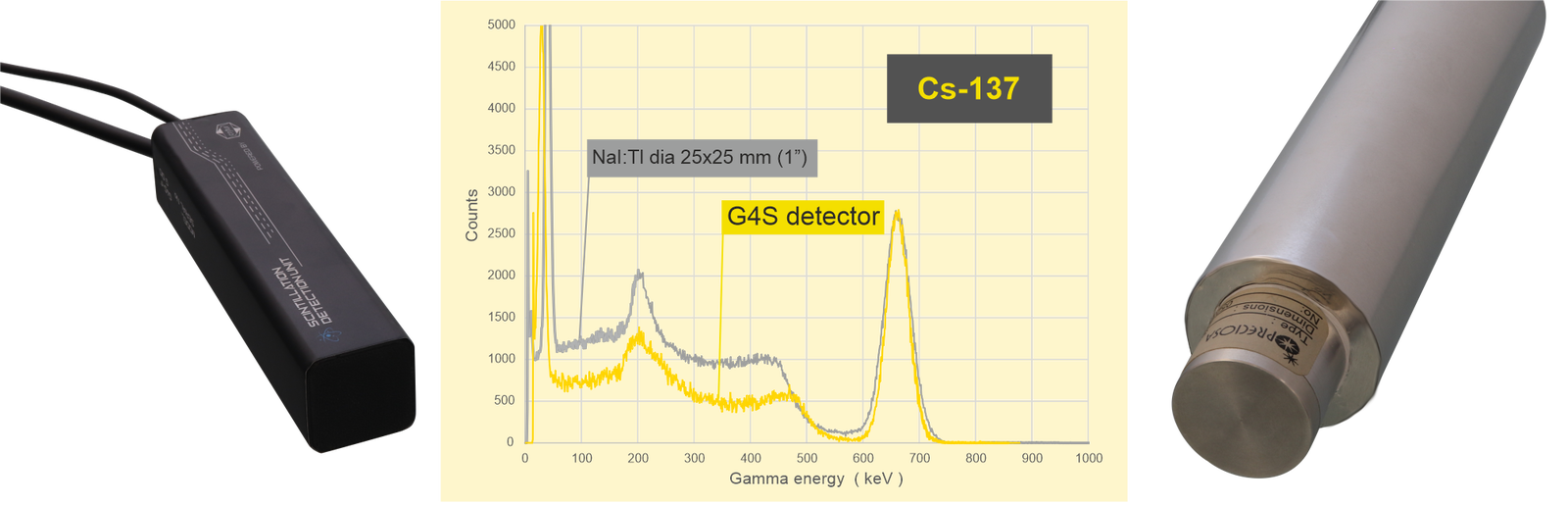

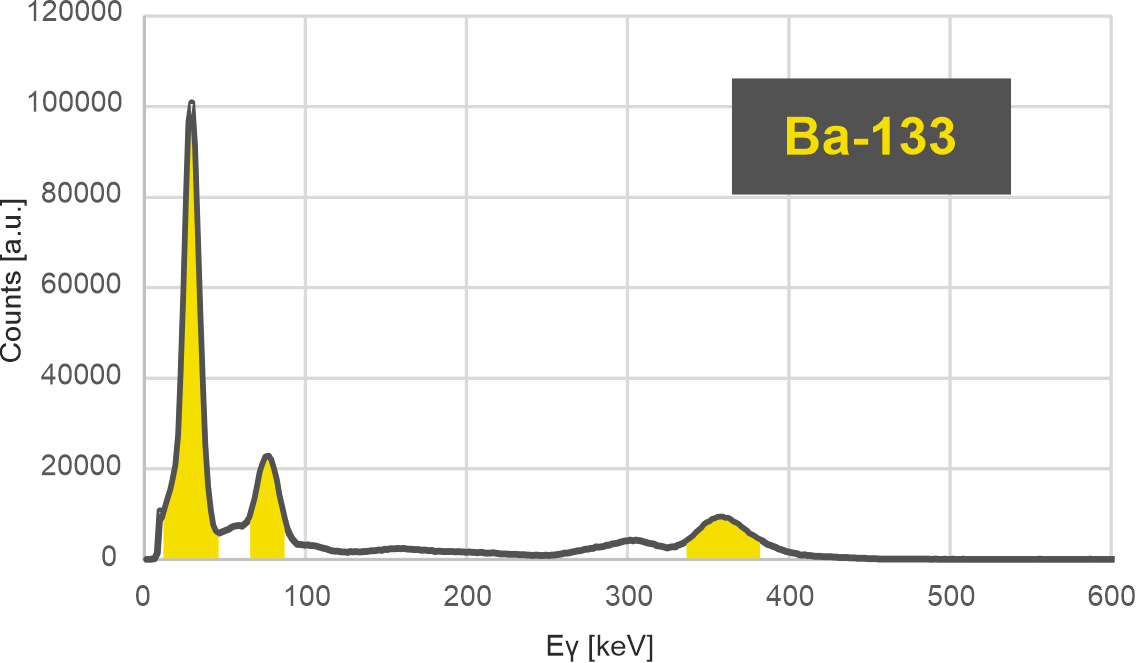

In comparison to 1” NaI:Tl detectors, the G4S detector shows comparable or better signal and the Compton scattering continuum is lower.

COMPARISON TO NaI:Tl SCINTILLATION DETECTORS

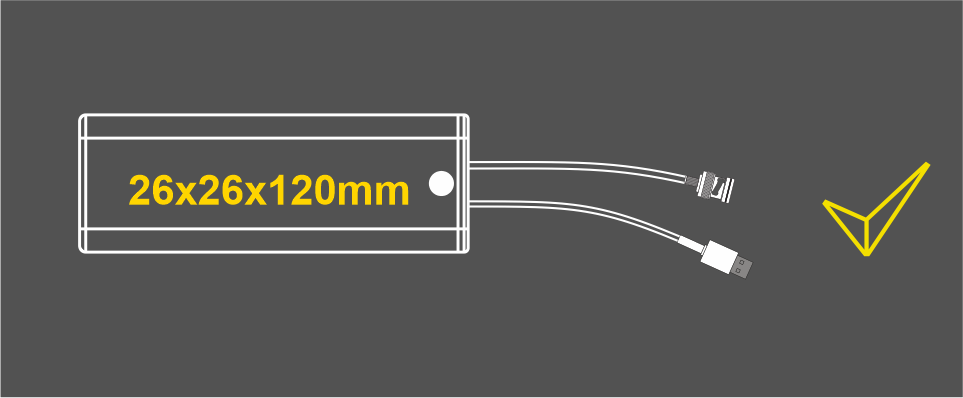

With only 26x26x120 mm (1x1x4.7 inches),
the G4S detector provides a convenient alternative
to NaI:Tl based detectors with no need for
additional equipment

SMALLER AND COMPACT SOLUTION

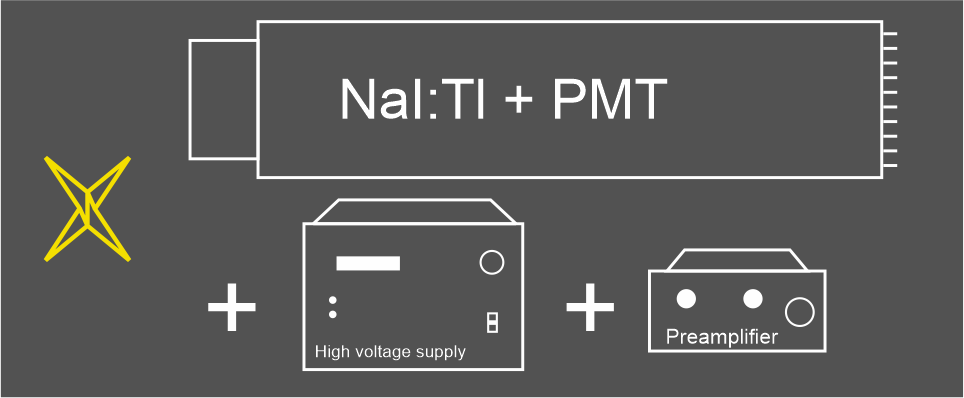

Unlike NaI:Tl based detectors, the G4S detector does
not require a HV supply to operate. Preamplifier is
optional and not required for data acquisition
