Scintillation detectors

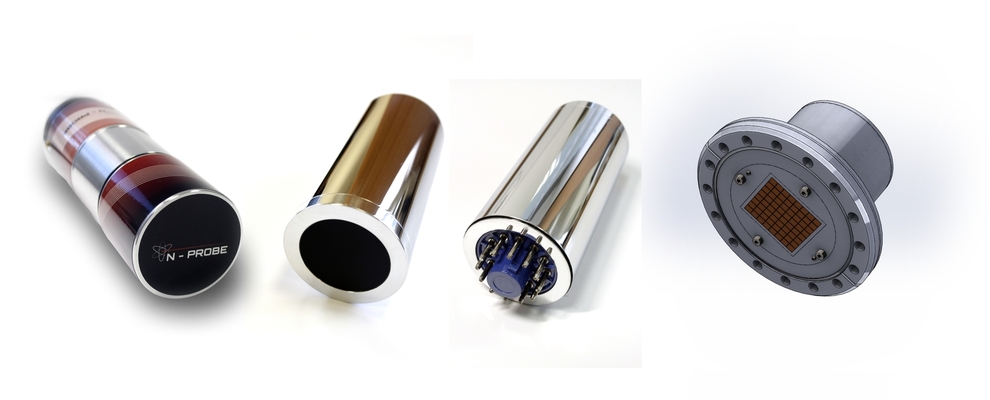

Crytur delivers scintillation detectors based on a combination of crystal scintillator with subsequent photomultiplier detection and readout

Standard detectors

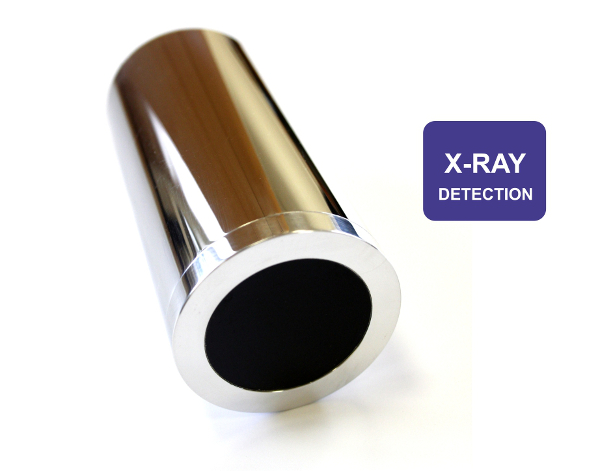

X-RAY DETECTOR (XR-DETECTOR)
For X-ray counting and spectroscopy Scintillation detector based on YAP:Ce scintillation crystal No toxic substances (e.g. beryllium) Energy range from 5keV to 150 keV High counting rate up to 10⁶ pulses per second

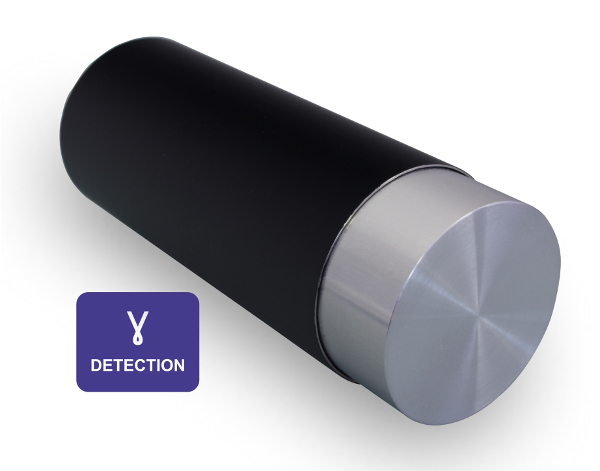

GAMMA DETECTOR (LGD-DETECTOR)
	For gamma-ray counting and spectroscopy Scintillation detector based on YAP:Ce crystal Excellent spectroscopy capabilities FWHM ≤ 5,5% 137CS@662 keV Suitable for energies from 100keV to 800 keV

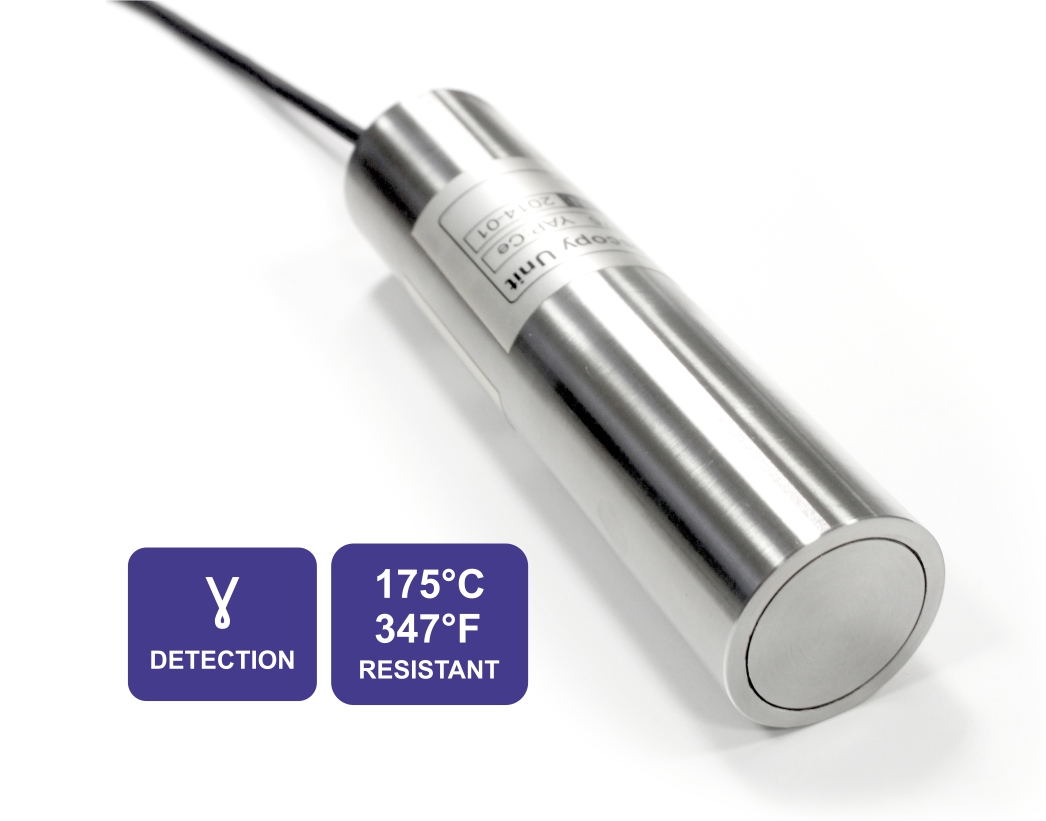

HIGH TEMPERATURE DETECTOR (HT-DETECTOR)
For gamma-ray counting and spectroscopy High temperature resistivity up to 175°C Ruggedized detector for harsh operating conditions Fast response

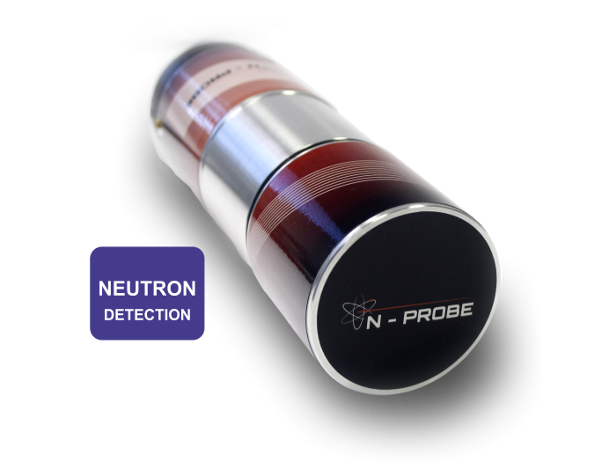

N - PROBE (NEUTRON DETECTOR)
³He alternative Innovative Li-based neutron scintillator Pulse - height gama / neutron discrimination NIM compatible
