CRY 60 fast scintillation screens

CRY 60 fast scintillation screens
The new CRY 60 fast scintillator provides a solution for next generation devices with high sensitivity and short response time.

Key characteristics

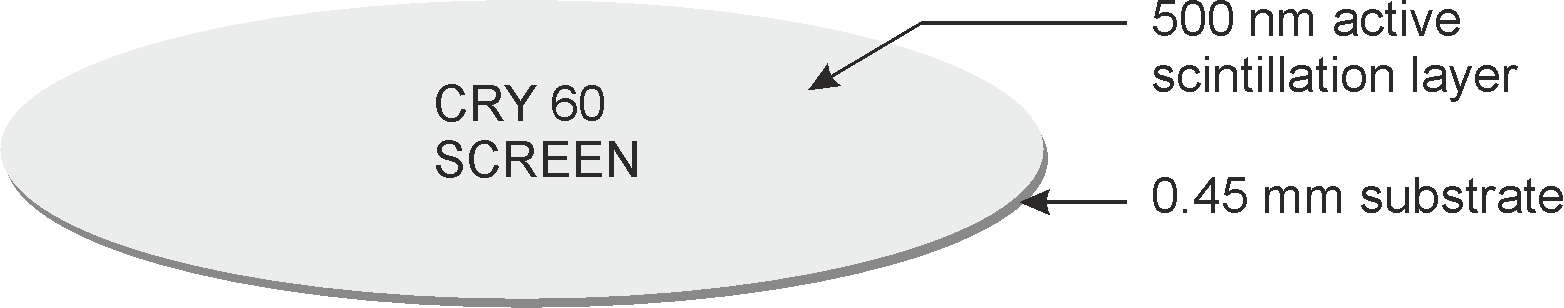

The new CRY 60 scintillator provides a solution for next generation devices with high sensitivity and short response time. This new material delivers high photon yield in an extremely thin scintillation layer.

Properties:

  • FAST SCINTILLATOR ~ ns
  • HIGH PHOTON YIELD
  • PERFECT SURFACE CHARACTERISTICS



Applications:

  • High resolution imaging screens (X-ray, EUV)
  • General electron detection
  • Time-of-flight instruments
  • Mass spectrometry

Technical parameters

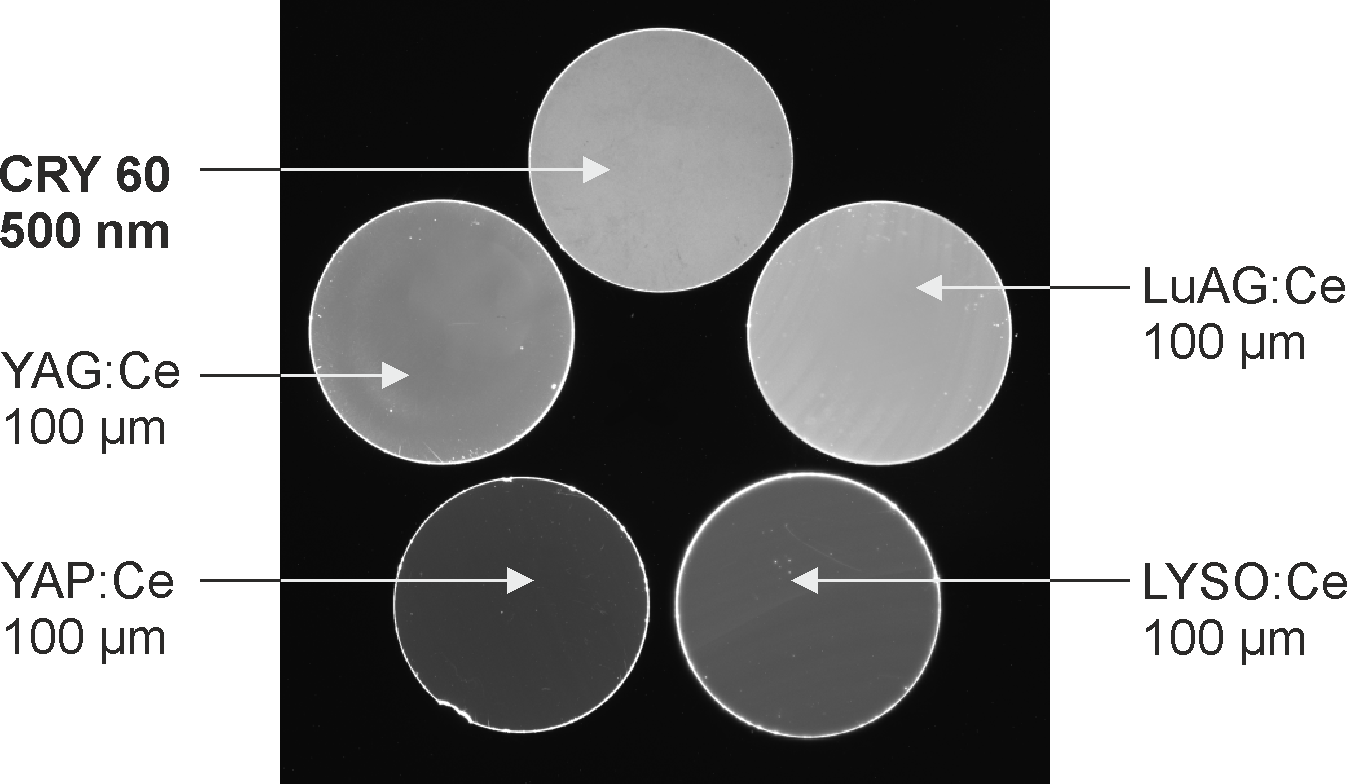

In comparison to other scintillation materials, CRY 60 provides better light output in regards to scintillation layer thickness.



Signal CRY60 YAG:Ce
(20 µm)
YAG:Ce
(100 µm)
LuAG:Ce LYSO:Ce
Before CCD correction (a.u.) 7800 2700 6100 7900 4000
After CCD correction (a.u.) 19400 4600 10400 13460 9950

Testing device:
X-Rays source: Moxtek with Cu anode, 40 kV, 50 µA
Camera: CRYCAM™ Macro system, 6 x 6 µm pixel size, 4540 x 3640 pixels
