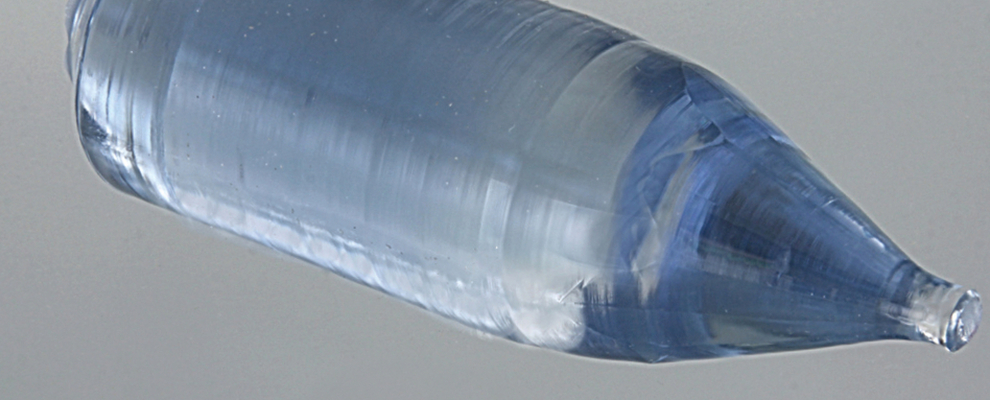

Yb:LuAG
Ytterbium doped lutetium aluminium garnet
Technical parameters
| Material characteristics | |
|---|---|
| Crystal structure | cubic - la3d |
| Emission wavelength | 1031 nm |
| Pump bands | 940 nm, 968 nm |
| Refractive index at 632 nm | 1.84 |
| Absorption cross section at 938 nm | 7.2 x 10-21 cm2 |
| Emission cross section at 2031 nm | 2.6 x 10-20 cm2 |
 |
 |
 |
 |
