Lasers

The laser production line of Crytur covers laser rods, laser components and complex solutions based on proprietary materials grown, processed and coated within a single production facility with a strict controll over the whole process.

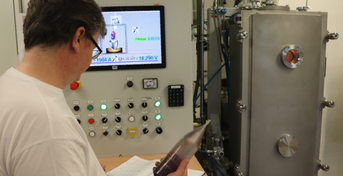

Czochralski crystal growth with automatic diameter control

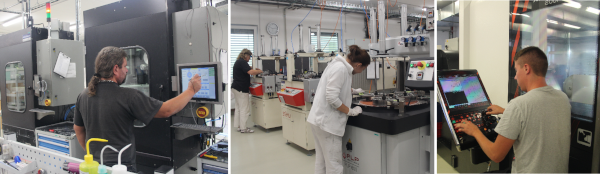

Grinding, cutting and polishing according to MIL standards

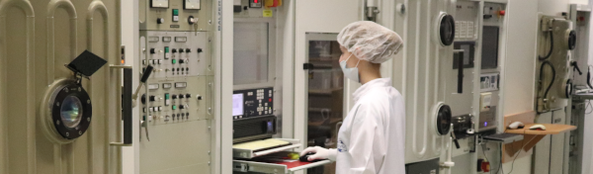

Ion assisted coating of dielectric AR, HR or OC mirrors, coating and sputtering of metal mirrors

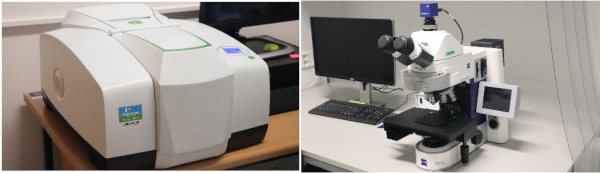

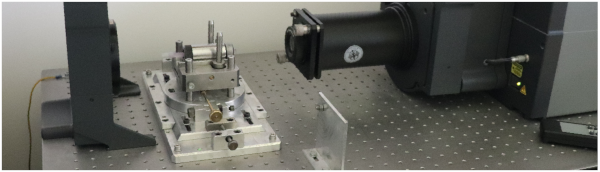

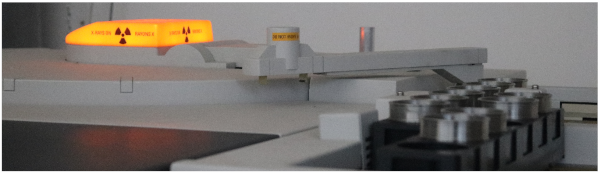

Quality control + measurement: dopant concentration, absorption UV - IR, parallelism, flatness, surface figure S/D, double- pass interferogram, extinction ratio, output energy in puls and CW laser. Quality parameters are carefully measured with: X-ray fluorescence spectrometer for measurement of chemical composition of crystals Zygo double pass interferometers – for WFD and parallelism measurements Autocollimators for parallelism measurement Optical microscopes for surface and bulk inspection Nomarski microscopes for surface inspection UV-VIS-NIR and IR spetrophotometers Extinction ratio measurement Bulk + coating transmittance at 1064 nm Active measurements in free-running and Q-switched lasers
