MonaLIGHT - Next Generation Modular Narrow Angle Light

MonaLIGHT - Next Generation Modular Narrow Angle Light
Versatile compact NONCOHERENT laser based light source modules

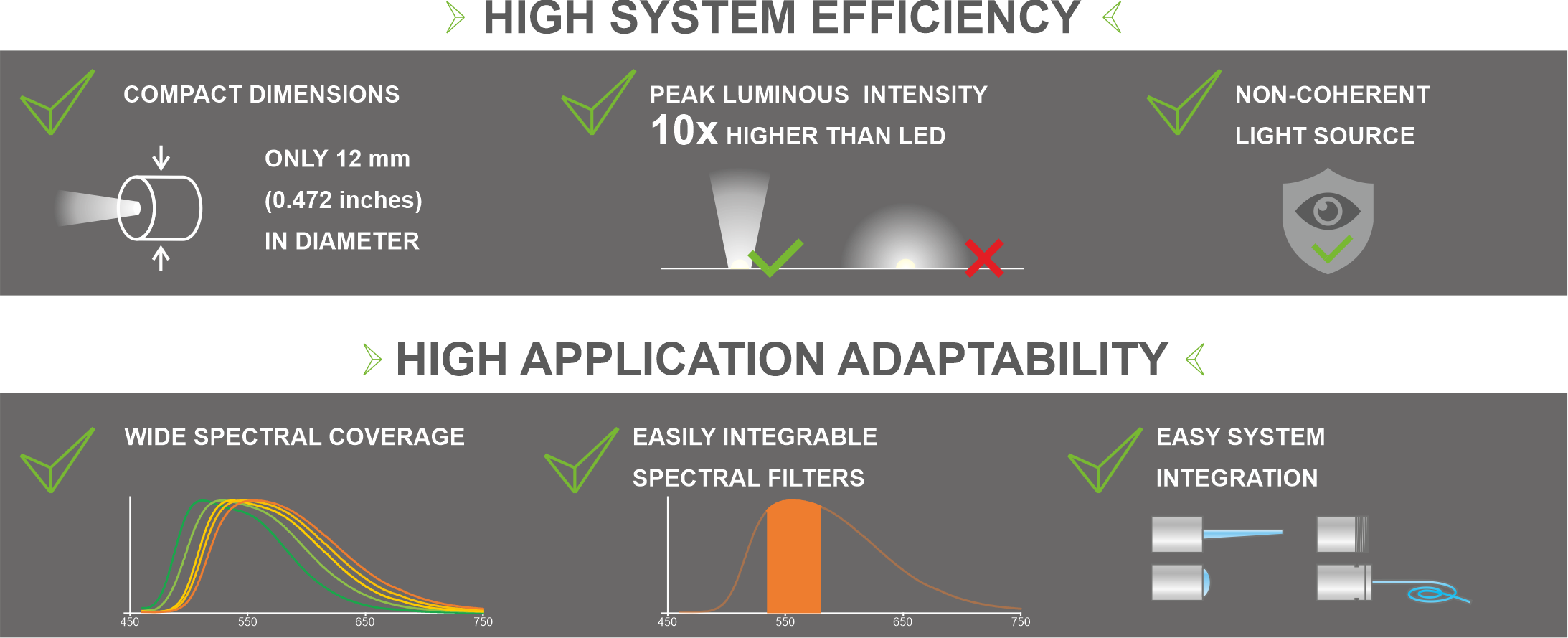

Key features

MonaLIGHT laser light modules represent the next-generation noncoherent light source built on laser technology with extraordinary characteristics.





  • Narrow Beam
  • Very Low Etendue
  • Enable High System Efficiency
  • Superb Lumen Density
  • Low Divergence Angle
  • High Luminous Intensity
  • Non-Lambertian Light Source
  • High Luminance
  • Compatible with Standard Optomechanics

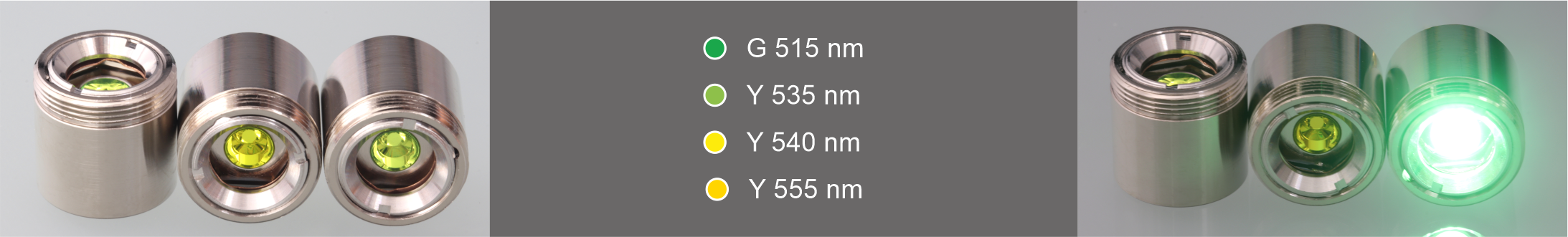

  • Adjustable to Specific Wavelength
  • Upcoming Generation of Laser Lighting
  • Wide Spectral Coverage



Key FEATURES

MonaLIGHT A01

Asymmetric light output well suited for slit illumination. An option is a direct attachment of a customized light guide.

MonaLIGHT B01

High output module with a symmetrical beam. Easy to integrate customized light guide.

MonaLIGHT F01

Optimized for etendue limited applications and direct fiber coupling with a directly accessible focal point with a 6° beam angle.

Luminous Flux: 1000 - 1300 lm 900 - 1100 lm  500-520 lm
Viewing Angle (FWHM): < 38°  6°
Peak Intensity: up to 3500 cd up to 6000 cd  up to 8000 cd
Beam Angle (FWTM): 90° 34°  25°
Optical Power: up to 2.3 W up to 2.3 W  up to 1.1 W
Physical PARAMETERS
Weight: < 10g 17.6 g  19 g
Diameter 12 mm 12 mm  12 mm
Power Input: 12.9 W 12.9 W  12.9 W



Scientific applications

MonaLIGHT opens new possibilities in design for scientific and industrial applications, whether it comes to instrumental lighting, laboratory equipment, machine vision, fiber optics or fluorescence miscroscopy.
The team of our technicians is ready to prepare customized MonaLIGHT modules to fit your application in:

  • Biotech
  • Endoscopy
  • Fluorescence microscopy
  • Life science
  • Machine vision
  • Microscopy
  • Projectors
  • Scientific
  • Sensorics
  • High-speed imaging

PRECISELY DEFINED BEAM PROFILE

MonaLIGHT excels in precisely defined beam profile and intensity characteristics. The modules are designed for easy integration with standard customized optical elements to provide unbeatable system efficiency.

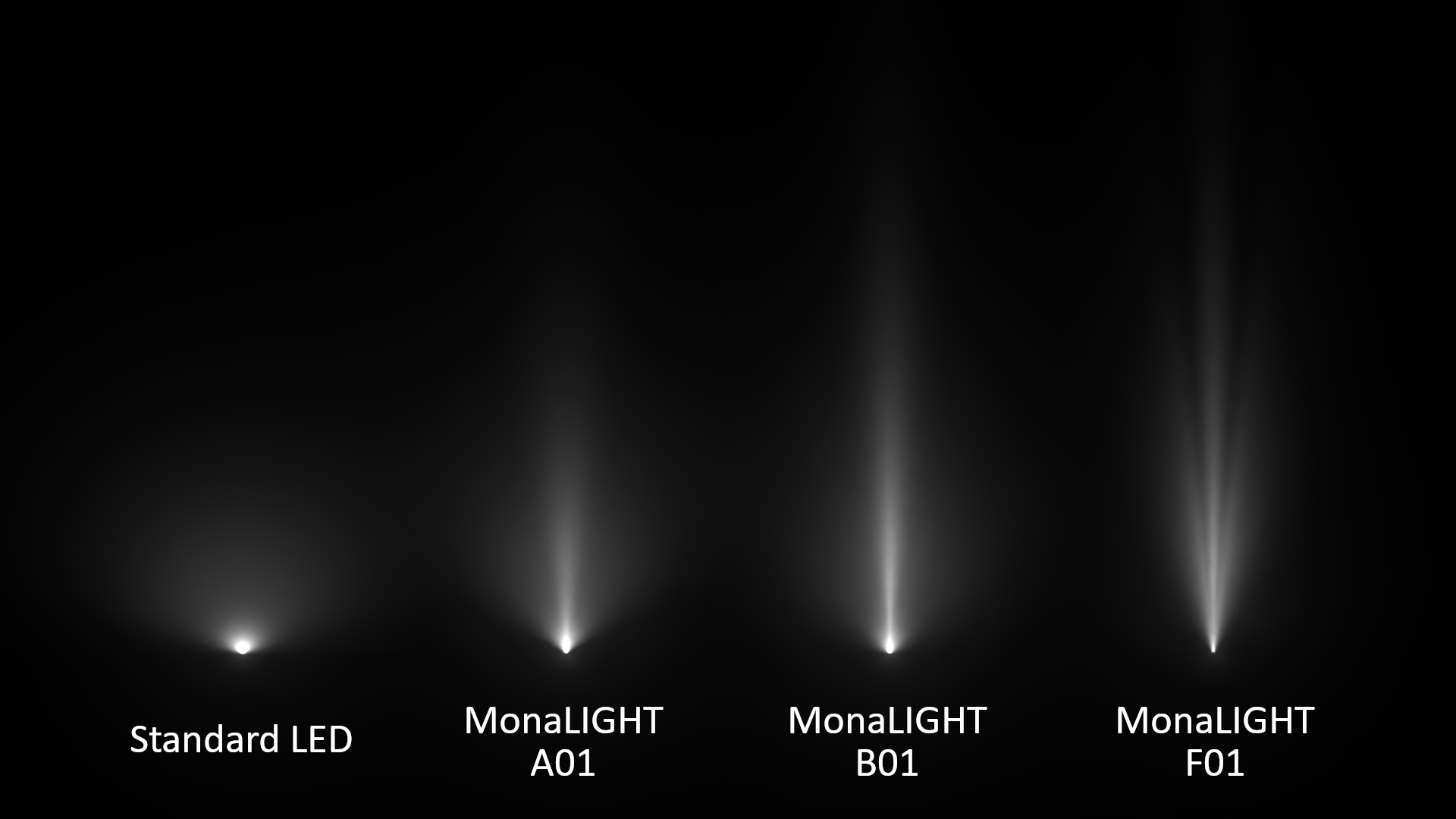

MonaLIGHT beam profile - comparison with standard LED (Lambertian) profile (normalized optical output)



Request your MonaLIGHT datasheet

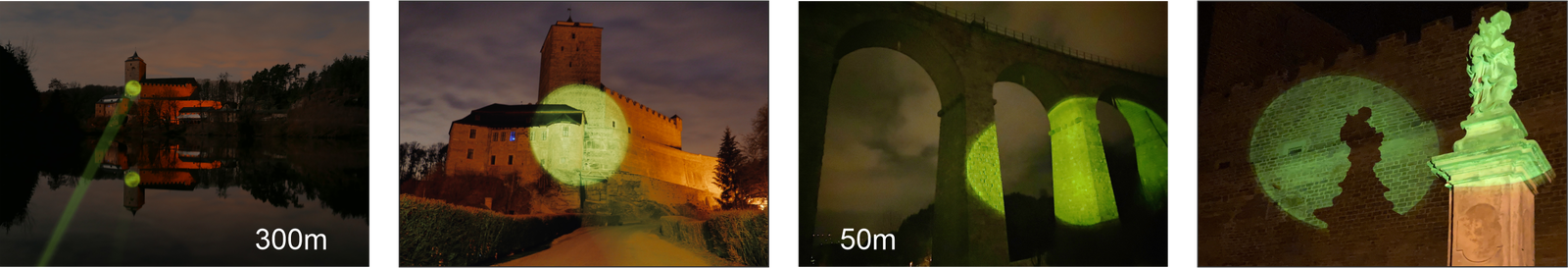

Outdoor applications

The combination of high luminous intensity, narrow divergence angle and small compact device dimensions opens new possibilities in design for outdoor lighting in many applications:

  • Airborne and UAV
  • Architectural
  • Automotive
  • Industrial and Mining
  • Marine and Navy
  • Projectors
  • Safety and security
  • Underwater and diving
  • Sensorics
  • Sports
