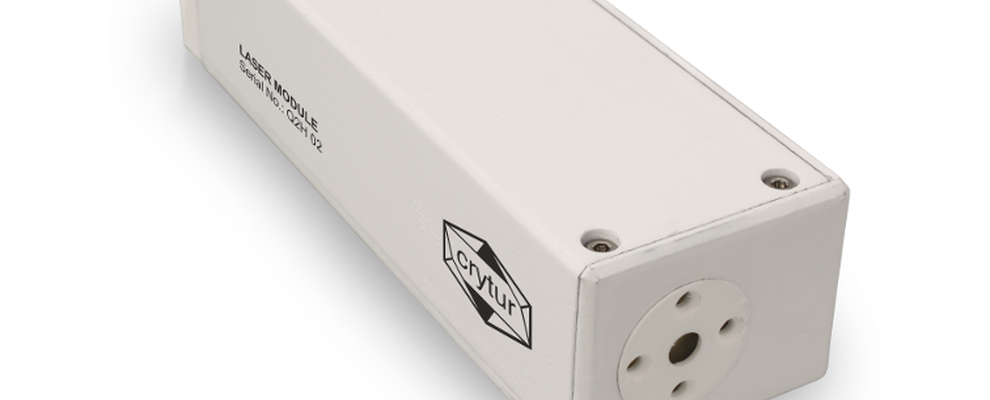

Q-switched laser head QLH 02
Nd:YAG nanosecond compact laser source at 1064nm
Key characteristics
-
Compact size
-
Easy adaptation
-
Beam profile customization
This laser is an appropriate solution for various medical applications especially in eye surgery.
Technical parameters
| Laser type | Passively Q-switched Nd:YAG laser |
| Wavelength | 1064 nm |
| Energy per single pulse | up to 40 mJ |
| Pulse duration | < 7ns |
| Pulse repetition rate | 1 Hz |
| Burst mode | up to 5 Hz |
| Beam diameter | 1,2 - 3 mm |
| Pumping | Xe flash lamp |
| Cooling | Air convective |
| Operating temperature | 10 - 35 °C |
| Dimensions | 26 x 26.5 x 110 mm |
Beam profile samples

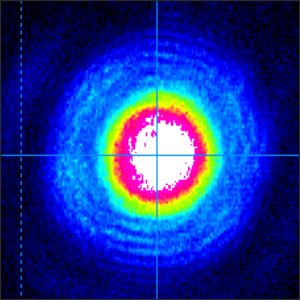

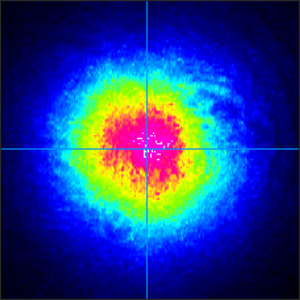

Examples of beam profiles generated with laser head QLH 02
 |
 |
 |
| Eout = 30mJ Beam dia. 1,2mm |
Eout = 40mJ Beam dia. 1,6mm |
Eout = 18mJ Beam dia. 2mm |
